What is a Wall Cavity? The Complete Guide to UK Property Structure

The cavity wall insulation installed to lower your heating bills could be the direct cause of damp spreading across your internal walls. It’s a frustrating and confusing situation for any homeowner. You’ve invested in making your property more energy-efficient, only to be faced with new, more serious problems. Conflicting advice from builders and surveyors often makes it impossible to know who to trust or what the real issue is.

This guide provides the clarity you need. We will explain exactly what is a wall cavity, detail its crucial role in preventing moisture penetration, and show you how to identify the critical signs that it is failing. You will gain the knowledge to diagnose the problem and understand when specialist intervention is essential for your home’s long-term health. Together, we’ll examine the anatomy of a healthy cavity, learn to spot a ‘bridged’ wall, and outline the correct steps to restore your property’s structural integrity and your peace of mind.

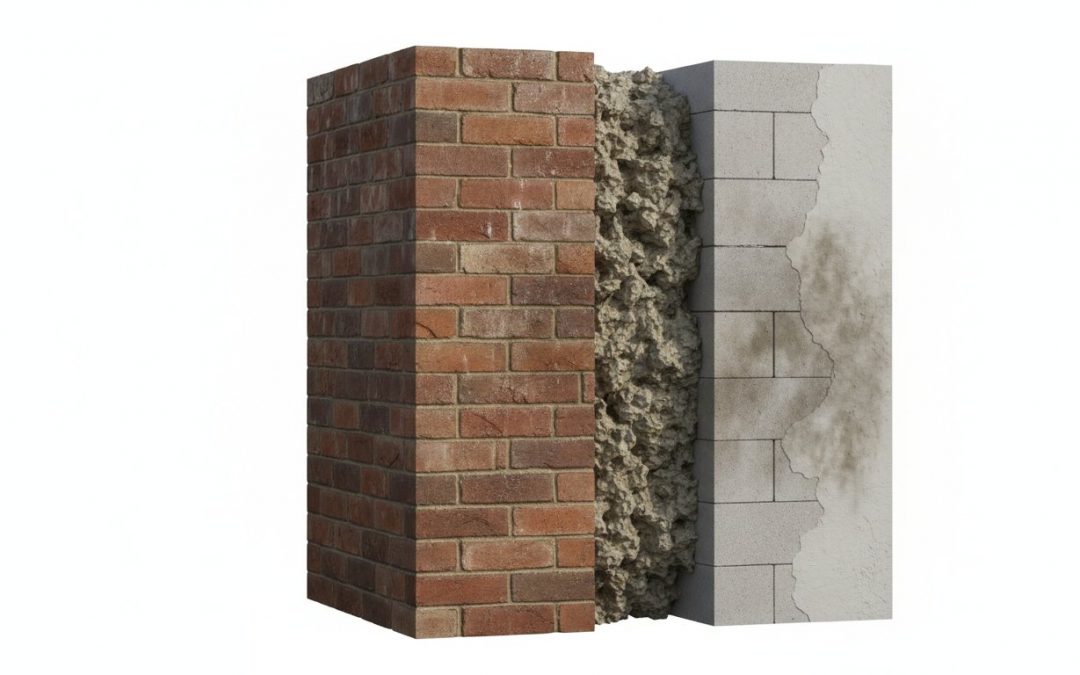

Defining the Wall Cavity: Anatomy of the Modern UK Home

Understanding the construction of your home is the first step toward protecting its long-term health. For most UK properties built after the 1930s, the exterior walls are not solid brick but are, in fact, cavity walls. So, what is a wall cavity? It is the engineered, empty space between two separate layers, or ‘leaves’, of masonry. This design was a significant advancement in construction, created specifically to prevent penetrating damp and improve thermal comfort.

The fundamental principle is straightforward yet highly effective. The outer leaf, typically built from brick, serves as the primary rain screen. It bears the brunt of wind and rain. The inner leaf, constructed from either brick or, more commonly in recent decades, concrete blocks, provides the main structural support for your home’s floors and roof. These two independent walls are held together by a series of metal wall ties, which are essential for ensuring the entire structure remains stable and secure. This separation is the key to a dry and healthy home, as it stops moisture from bridging across to the internal wall surface.

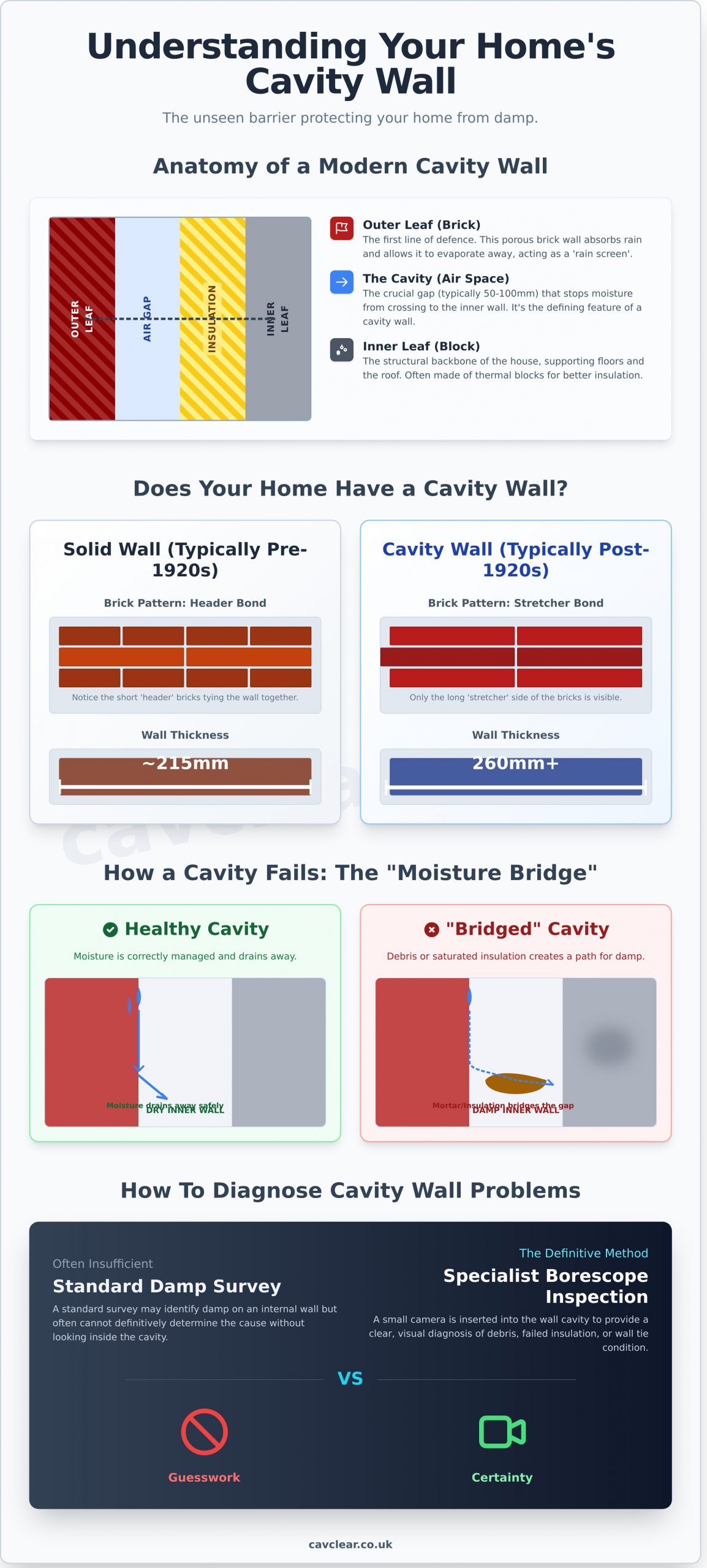

The Three Core Components of a Cavity Wall

A cavity wall’s performance relies on three distinct elements working in unison:

• The Outer Leaf: This exterior wall is designed to be porous. While this seems counterintuitive, it allows the brickwork to absorb rainwater and then release it through evaporation. The cavity behind it ensures this moisture never reaches the inside of your property, instead draining harmlessly away at the base.
• The Air Space: The cavity itself is a critical barrier. In post-war UK construction, this gap was typically 50mm wide. In modern homes built since the 1990s, the standard has increased to between 75mm and 100mm to accommodate high-performance insulation boards, a key part of meeting building regulations for thermal efficiency. To understand the basic principles of what is a cavity wall, it helps to recognise this air gap as its defining feature.
• The Inner Leaf: This is the structural backbone of the house. While early cavity walls used brick for the inner leaf, the post-1970s energy crisis saw a widespread shift to lightweight, aerated concrete blocks. These ‘thermal blocks’ offer superior insulation properties compared to standard brick, forming the first line of defence against heat loss.

Visualising the Structure: How It Differs from Solid Walls

You don’t need to be a surveyor to identify a cavity wall. There are two simple visual clues. First, examine the brickwork pattern, or ‘bond’. Cavity walls almost exclusively use a ‘stretcher bond’, where every brick is laid lengthways. You will only see the long side of the bricks. In contrast, older solid walls often feature patterns with ‘header’ bricks (the short end) visible, which were used to tie the wall together.

Second is the thickness test. Measure the width of the external wall at a door or window opening. A traditional solid wall made of two layers of brick is approximately 215mm deep. A cavity wall will be noticeably thicker, typically measuring at least 260mm and often exceeding 300mm in new builds. This extra depth accounts for the outer brick, the cavity, and the inner block, confirming the presence of this essential structural feature.

The Evolution of Cavity Wall Construction in the UK

The wall cavity is a standard feature in most UK homes built after the 1920s, yet its original purpose was very different from its role today. The story of its development is one of British builders responding directly to the challenges of our damp climate. Understanding this history helps explain not just what is a wall cavity, but why its performance is so critical to your home’s structural health and energy efficiency.

Before 1920, the vast majority of UK properties were built with solid brick walls. Typically constructed with two layers of brick bonded together, these nine-inch walls were strong but had a significant flaw: they were highly susceptible to penetrating damp. Porous brickwork would absorb rainwater, and during prolonged wet spells, this moisture would track through the wall and appear as damp patches on interior plaster. This persistent problem made homes cold, damp, and difficult to heat.

The solution began to emerge in the late 19th and early 20th centuries with the concept of the ‘hollow wall’. By building two separate leaves, or skins, of brickwork held together with metal wall ties, builders created a gap. This simple innovation, the wall cavity, acted as a physical barrier. Any rainwater penetrating the outer leaf would run down the inside face of the brickwork and drain safely away at the bottom, preventing it from ever reaching the inner wall. Adoption was slow, initially confined to coastal areas and regions with high levels of driving rain, but post-war rebuilding efforts after 1945 accelerated its use as a faster, more material-efficient construction method.

The primary function of the wall cavity shifted dramatically following the 1973 oil crisis. With energy costs soaring, the government introduced new Building Regulations focused on thermal performance. The empty space between the walls was identified as the perfect place to install insulation, transforming its purpose from moisture management to heat retention. This change answers a key part of the question, what is a wall cavity in the modern era? It’s a thermally-engineered component of your home’s building envelope.

Modern Standards and Regulatory Demands

Today, wall cavity design is dictated by stringent energy efficiency standards. The original 50mm cavities are now commonly 100mm to 150mm wide to accommodate high-performance insulation boards. Modern construction also mandates features like weep holes for ventilation and drainage. These regulations, specifically Part L (Conservation of fuel and power), demand extremely low U-values (a measure of heat loss), making a properly constructed and insulated cavity non-negotiable for new builds. As we approach the Future Homes Standard in 2025, these requirements will become even stricter, placing greater emphasis on the integrity of the entire wall system. Ensuring your wall cavity is expert from debris or failed insulation is the first step to meeting modern performance expectations. If you have concerns about your property’s thermal efficiency, a professional cavity wall inspection provides the clarity needed to take action.

How a Functional Wall Cavity Protects Your Property

A wall cavity is far more than an empty space between bricks. It is a critical, engineered system designed to defend your home against the two primary threats to its structural integrity and comfort: penetrating damp and heat loss. When this space is clear and functional, it performs its job silently. However, if it becomes blocked with debris or incorrectly filled with failing insulation, the consequences can range from damp patches and mould to significant structural decay and higher energy bills.

The most fundamental purpose of the cavity is to create an impassable barrier for moisture. It achieves this by preventing capillary action, the process by which water is naturally drawn through porous materials like brick and mortar. The air gap provides a complete physical break, making it impossible for damp to migrate from the outer wall to the inner wall. This defence mechanism is vital in the UK, where wind-driven rain is a constant challenge for masonry.

A functional cavity wall system manages this threat methodically:

• It blocks driving rain: The outer leaf of brickwork is designed to get wet. It acts as a protective shield. Even when persistent rain penetrates this first layer, the cavity stops the moisture in its tracks, ensuring it cannot reach your internal walls and cause damage.
• It provides controlled drainage: Any water that enters the cavity runs safely down the internal face of the outer brickwork. It is then intercepted by the Damp Proof Course (DPC) at the base of the wall and channelled back outside through small openings called weep vents.
• It promotes evaporation: The air within the cavity circulates through vents, a crucial design feature. This airflow helps to evaporate any residual moisture, preventing a damp, stagnant environment from developing within the structure of your home.

Understanding these protective layers is central to answering the question of what is a wall cavity and why its integrity is so vital for long-term property health.

The Science of Moisture Management

This entire system operates on the ‘Rain Screen’ principle, a cornerstone of modern construction science. The outer brickwork is the ‘screen’, the cavity is the ventilated drainage plane, and the inner leaf is the protected, airtight, and insulated part of your home. A correctly installed DPC is the foundation of this system, preventing rising damp and directing cavity water out. A dry inner leaf is non-negotiable for preventing costly structural issues like wet rot in floor joists and the growth of toxic black mould.

Thermal Benefits: The Cavity as an Insulator

Beyond moisture defence, the cavity offers a significant thermal advantage. The layer of largely ‘still’ air trapped between the two walls acts as a poor conductor of heat, creating a natural insulating barrier. While solid walls were standard before the 1920s, the shift to cavity construction marked a major improvement in thermal efficiency. This leap was further enhanced after the 1970s energy crisis, leading to updated Building Regulations in the 1980s that made installing insulation within new cavities a standard practice, directly impacting household energy consumption. Even an empty cavity, however, provides substantially better heat retention than a solid 9-inch brick wall.

Common Failures: When the Cavity Becomes a Liability

A correctly constructed cavity wall is an essential defence for your property, providing thermal insulation and protection against penetrating damp. However, this crucial gap can become a significant liability when its integrity is compromised. Flaws in construction or the degradation of materials over time can turn this protective feature into a direct pathway for moisture and a threat to your home’s stability. Understanding these failures is central to knowing not just what is a wall cavity, but how it can go wrong.

Common issues fall into three main categories: cavity bridging from debris, failed insulation material, and the corrosion of metal wall ties. Each problem presents a distinct threat, from damp and mould on your internal walls to severe structural damage. Identifying the signs of a compromised cavity is the first step toward protecting your investment and ensuring your home remains a safe, dry environment.

The Danger of Debris and Mortar Snots

During the construction of a property, it’s common for excess mortar and other debris to fall into the cavity. These “mortar snots” can stick to wall ties, while heavier rubble accumulates at the base of the wall above the damp-proof course (DPC). This creates a physical bridge that allows rainwater soaking the outer brickwork to track directly across to the inner wall, completely bypassing the cavity’s protective function. Damp appearing at floor level is a classic indicator of a cavity blocked with this type of construction debris.

Wall Tie Failure and Structural Stability

Wall ties are the critical metal components that physically connect the inner and outer leaves of your wall. In UK properties built before 1981, these ties were often made from galvanised steel with a protective lifespan of around 40-60 years. Once this protection fails, the ties rust and expand, forcing apart the mortar joints and causing distinct horizontal cracking. This “silent” threat can lead to the outer leaf bowing outwards, and in the most severe cases, collapsing during high winds.

The signs of a compromised wall cavity aren’t always as dramatic as a collapsing wall. Often, the evidence appears inside your home first. You should seek a professional assessment if you notice:

• Persistent Damp Patches: Random damp spots appearing on internal walls, which often feel cold to the touch and may worsen after heavy rain.
• Damaged Decoration: Wallpaper that peels away from the wall or paint that blisters for no obvious reason, particularly near the floor.
• Mould Growth: Black mould appearing in corners or behind furniture, indicating a constant source of moisture within the wall structure.
• A Musty Odour: A persistent damp, earthy smell that doesn’t disappear with ventilation is a strong sign of trapped moisture.

These symptoms suggest that the cavity is no longer performing its function. Whether it’s due to moisture-laden insulation or debris bridging the gap, the problem will not resolve itself and requires specialist intervention. If you recognise these warning signs, your home’s health and structural integrity are at risk. Protect your property by scheduling a professional cavity wall inspection and clearance service today.

Maintaining and Surveying Your Wall Cavity

Understanding what is a wall cavity is the first step; ensuring it remains functional is critical for the long-term health of your property. A hidden void within your walls can develop serious problems that go undetected for years, leading to penetrating damp, mould, and structural decay. While out of sight, your cavity should not be out of mind. Professional oversight is the only reliable way to confirm its condition and prevent minor issues from becoming costly structural failures.

Many homeowners assume a standard pre-purchase or general damp survey will identify these faults. This is a dangerous misconception. A general surveyor uses a surface damp meter and visual inspection, which cannot diagnose problems hidden between the brick and blockwork. They may identify damp on an internal wall but will often misattribute the cause, leading to ineffective and expensive treatments that fail to address the root problem: a compromised wall cavity.

The Specialist Borescope Inspection Process

A specialist borescope inspection is a minimally invasive procedure that provides a definitive view inside your walls. Our technicians drill a series of small, strategically placed holes, typically no wider than a 10p coin (around 20-22mm), through the external mortar joints. A high-resolution endoscopic camera is then inserted, allowing us to see exactly what is happening inside. We look for specific defects, including:

• Construction Debris: Mortar droppings and rubble left during the original build can bridge the cavity, creating a direct path for moisture to travel to your internal walls.
• Wall Tie Condition: We assess the state of the metal wall ties. Signs of corrosion are a major structural concern, as failing ties can compromise the stability of the outer leaf of brickwork.
• Insulation State: If insulation is present, we check for slumping, water saturation, or incorrect installation, all of which render it ineffective and can cause severe damp.

Following the inspection, you receive a detailed photographic report. This document provides clear, visual evidence of the cavity’s condition, which is invaluable for insurance claims, property negotiations, or simply for your own peace of mind.

Remedial Actions: Extraction and Repair

If the survey uncovers defective cavity wall insulation, the only correct course of action is a full extraction. Using specialised industrial vacuums and compressed air systems, our accredited technicians carefully remove all the saturated or slumped material from the bottom up, restoring the essential air gap. This process is clean, controlled, and ensures the cavity is returned to its original design specification. Once clear, the cavity can once again perform its primary function of preventing water ingress.

Where corroding wall ties are identified, we can isolate and replace them with modern, stainless steel alternatives that conform to British Standards like BS 8208. This work secures the structural integrity of your walls for decades to come. Protecting your property starts with understanding its hidden components. If you have any concerns about your home’s performance, don’t guess. Book a Specialist Cavity Survey with Cav Clear Ltd today and get a guaranteed solution.

Ensure Your Wall Cavity Performs as It Should

The gap between your walls is more than just empty space; it’s a critical component of your property’s defence against the UK climate. A clear, functional cavity protects against penetrating damp and improves thermal efficiency. However, when compromised by debris or failed insulation, it becomes a direct path for moisture, leading to costly structural issues. Understanding what is a wall cavity is the first step; ensuring it remains clear and dry is vital for your home’s long-term health.

If you suspect an issue, don’t leave it to chance. A professional assessment provides definitive answers and prevents minor problems from escalating. Our accredited technicians use specialist extraction equipment and provide detailed borescope reporting, giving you a clear view of your property’s condition. From our base in Manchester, we offer a nationwide service dedicated to restoring your home’s integrity and your peace of mind.

Take control of your property’s health. Request a Professional Cavity Wall Survey from Our Manchester Specialists and secure a guaranteed solution for a dry, warm, and safe home.

Frequently Asked Questions About Wall Cavities

Is a wall cavity necessary in a modern house?

Yes, a wall cavity is a fundamental requirement in modern UK house construction under Building Regulations Part L. Its primary purpose is to create a barrier that prevents rainwater from penetrating the inner wall, protecting your home from damp. This gap also allows for the installation of thermal insulation, which is crucial for meeting today’s energy efficiency standards. A correctly constructed cavity is vital for both structural integrity and household comfort.

Can I tell if my house has cavity walls by looking at the bricks?

Yes, you can often identify a cavity wall by examining the brick pattern. A cavity wall typically uses a ‘stretcher bond’, where you only see the long side of the bricks. In contrast, older solid walls often have a ‘Flemish’ or ‘English’ bond, showing a mixture of long sides and short ends (headers). A wall thicker than 260mm (about 10.5 inches) is also a strong indication that it contains a cavity.

What happens if a wall cavity is blocked with debris?

If a wall cavity is blocked with debris, it can lead directly to penetrating damp inside your home. Mortar droppings and rubble left during construction can accumulate on wall ties, creating a ‘bridge’ for moisture. Rainwater that soaks into the outer brickwork travels across this debris to the inner wall. This results in damp patches, damaged plaster, and a significant reduction in your home’s thermal performance, making rooms feel cold and musty.

How wide should a standard wall cavity be in the UK?

In the UK, current Building Regulations mandate a minimum clear cavity width of 50mm for new constructions. This standard ensures there is an adequate barrier against moisture and sufficient space for effective insulation. While properties built from the 1920s to the 1980s may have narrower cavities, modern builds often feature cavities of 75mm to 100mm. This larger gap accommodates thicker insulation, achieving a higher level of thermal efficiency for the property.

Do all cavity walls need to be insulated?

Yes, all cavity walls in new UK properties built after 2002 must be insulated to meet strict energy efficiency regulations. For older homes, there isn’t a legal mandate to retrospectively insulate, but it’s strongly advised. According to the Energy Saving Trust, proper cavity wall insulation can save a typical semi-detached home up to £280 annually on heating bills. However, it’s crucial to first ensure the cavity is clean and suitable for insulation.

Can moisture travel across a wall cavity?

Moisture can and will travel across a wall cavity if a pathway, or ‘bridge’, is present. A clean, clear cavity is designed to stop this from happening. The problem arises when mortar droppings, misplaced insulation, or incorrectly fitted wall ties connect the outer and inner leaves of the wall. These bridges act like a wick, drawing rainwater from the exterior brickwork directly to your internal walls. This process is a primary cause of penetrating damp in properties.

How much does it cost to have a cavity wall survey?

The cost for a specialist cavity wall survey in the UK generally ranges from £250 to £500, depending on the size of your property and the survey’s scope. This essential investigation uses a small camera called a borescope to visually inspect the cavity’s internal condition. A qualified surveyor will check for blockages, assess the state of wall ties, and determine the suitability for insulation. It provides the clear diagnosis needed before any remedial work is undertaken.

What is a ‘bridged’ cavity and why is it a problem?

A ‘bridged’ cavity is one where the gap between the inner and outer walls is unintentionally connected by debris or building materials. This is a serious problem because it defeats the purpose of what is a wall cavity. The bridge, often formed by excess mortar or rubble left during construction, creates a direct path for rainwater to travel from the outer leaf to the inner wall. This leads to persistent penetrating damp, cold spots, and potential mould growth.
