Could a few millimetres of steel be the only thing standing between your home and a £15,000 structural repair bill? You likely recognise that your property’s stability depends on the hidden components within your cavity walls, yet the sight of a subtle bulge in your brickwork is understandably unsettling. Approximately 25% of older cavity wall properties in the UK face issues with incorrect wall tie spacing or corroded fixings, especially where historical workmanship didn’t meet the rigorous requirements of modern British Standards.
As a specialist in structural integrity, we’ve developed this guide to provide the technical clarity you need to master these requirements, ensuring your home remains sound and protected from moisture-driven failure. We’ll explain the critical 450mm by 900mm staggered pattern required by Approved Document A and show you how to identify signs of incorrect installation. By the end of this article, you’ll have the expert knowledge to safeguard your property’s long term health and restore your peace of mind regarding its structural integrity.
Key Takeaways
- Understand the critical UK standards for masonry connectors, including the specific 450mm vertical and 900mm horizontal staggered pattern required for maximum stability.
- Learn how precise wall tie spacing distributes lateral wind loads across both cavity leaves to prevent structural failure and maintain the safety of your home.
- Discover why retrospective cavity wall insulation often leads to accelerated corrosion and how moisture trapped within the cavity compromises metal ties.
- Recognise the importance of specialist diagnostic tools, such as borescope cameras, to identify hidden structural faults that a simple visual inspection will miss.
- Gain insight into the remedial installation process, ensuring your property is professionally reinforced and protected against future moisture-driven damage.
What is Wall Tie Spacing and Why Does it Matter?
Wall tie spacing is the measured density of metal connectors that bridge the gap between a property’s inner and outer masonry leaves. It isn’t a matter of guesswork. It’s a precise structural requirement. These ties ensure that the two separate walls act as a single, cohesive unit. When wall tie spacing is neglected, the outer leaf lacks the necessary lateral support. This leads to what engineers call independent leaf behaviour, where the external skin is left to support its own weight and resist environmental forces without help from the main structure.
The primary role of these components is the distribution of lateral wind loads. In a standard UK cavity wall, the inner leaf provides the majority of the structural strength. The cavity wall tie transfers the pressure of wind hitting the facade onto that stronger inner leaf. If the ties are too far apart, the outer leaf can flex, bow, or eventually collapse under the pressure of high-velocity winds. The relationship between the length of the tie and the width of the cavity is also vital. A 225mm tie is typical for a 100mm cavity, ensuring enough length remains for secure anchoring.
The Structural Purpose of Cavity Wall Ties
Effective tie placement relies on a combination of density and embedment. For a standard masonry wall where both leaves are thicker than 90mm, the British Standard PD 6697:2010 mandates a minimum density of 2.5 ties per square metre. This usually translates to a maximum horizontal spacing of 900mm and a vertical spacing of 450mm. The ties must be staggered across the wall to ensure even load distribution. A critical factor is the embedment depth. Each tie should sit at least 62.5mm into the mortar bed on both sides. If the tie doesn’t reach this depth, its ability to grip the masonry is compromised, rendering the wall tie spacing irrelevant. Spacing requirements become even stricter as building height increases or when a property is located in high-exposure geographic zones, such as coastal regions in Cornwall or Western Scotland where wind speeds regularly exceed 60mph.
Consequences of Poor Spacing and Specification
When spacing is insufficient or the wrong tie length is used for the cavity width, the structural integrity of the home is at risk. Visual signs of failure often appear as horizontal cracking along mortar joints, typically every four to six courses of bricks. You might also observe bulging brickwork where the outer leaf has begun to pull away from the inner leaf. This peeling effect is a precursor to total wall failure. In the UK, high-wind events frequently expose these weaknesses.
We often find that these issues are exacerbated by the presence of retrospective cavity wall insulation. We strongly advise against installing such insulation because it frequently traps moisture against the ties. This leads to accelerated corrosion and expansion, which forces the mortar joints apart and weakens the connection regardless of the original spacing. Sagging lintels and distorted window frames are also common indicators that the masonry is no longer being supported correctly. Fixing these issues requires a specialist approach to ensure the property is returned to a safe, stable condition.
Standard Wall Tie Spacing Requirements in the UK

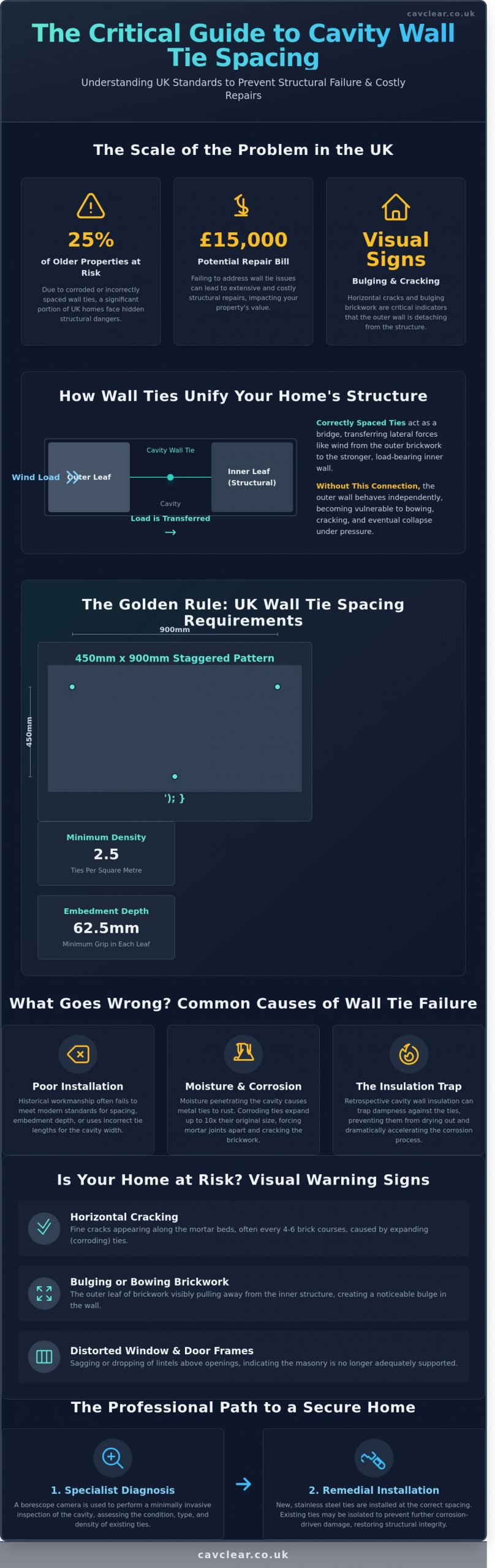

Ensuring the structural integrity of a cavity wall depends entirely on the correct distribution of ties. For most domestic properties in the UK, the standard wall tie spacing follows a precise 450mm vertical and 900mm horizontal pattern. This creates a staggered layout where ties in one row sit centrally between ties in the row below. A staggered arrangement is vital; it prevents the formation of vertical weak points and ensures the load is distributed evenly across both masonry leaves. If ties are placed in a direct vertical line, the wall’s ability to resist lateral pressure is significantly reduced.
British Standards require a minimum density of 2.5 ties per square metre. Achieving this density isn’t just a recommendation; it’s a structural necessity. When ties are missing or poorly spaced, the outer leaf lacks the lateral support required to resist wind loads. This often leads to bowing or bulging masonry. We frequently see properties where builders ignored these spacing rules, resulting in costly remedial work later. Our specialists focus on restoring this stability through precise wall tie replacement services that adhere to current safety protocols.
Approved Document A and British Standard BS 5628
The regulatory framework for masonry construction is defined by UK building regulations and BS 5628. These documents specify that tie lengths must be appropriate for the cavity width, typically allowing for a minimum 62.5mm embedment in each leaf. Table 5 in Approved Document A outlines these requirements clearly. Modern homes often feature wider cavities, sometimes exceeding 100mm, to accommodate thicker insulation. These wider gaps demand higher specification ties and stricter adherence to spacing intervals to prevent flexing. It’s critical to avoid retrospective cavity wall insulation in these spaces, as it often traps moisture against the ties, accelerating corrosion and compromising the wall’s long-term health.
Spacing at Openings and Unbonded Edges
Vulnerable areas like windows, doors, and movement joints require additional reinforcement. The standard rule dictates that ties must be placed at 300mm vertical intervals within 225mm of any opening. This increased density provides the necessary stiffness where the masonry bond is interrupted. At the top of gables and along the roofline, additional ties are mandatory to secure the triangular section of the wall against high-level wind pressures. These specific zones are where structural failure most frequently begins if the wall tie spacing is insufficient.
Builders often make the mistake of terminating wall ties too far below the wall plate or failing to add extra ties at unbonded edges. This leaves the top courses of bricks effectively floating, which can cause significant structural movement during storms. Ensuring every edge has the correct wall tie spacing is the only way to guarantee the safety of the building. We provide transparent assessments to identify these hidden faults before they lead to visible cracks or damp issues. Our no-nonsense approach ensures your home meets the 2.5 ties per square metre standard without the need for invasive or unnecessary procedures.
Why Spacing Fails: The Impact of Cavity Wall Insulation
Even if a contractor strictly adheres to the UK Building Regulations for wall tie spacing, the structural integrity of your home remains at risk if the cavity is filled with retrospective insulation. The standard requirement of 2.5 ties per square metre assumes a clear, ventilated air gap. When this gap is filled with retrofitted wool, beads, or foam, the fundamental physics of the wall change. CavClear specialists frequently encounter properties where the wall tie spacing is technically correct, yet the wall is structurally unsound because of moisture entrapment.
Retrospective cavity insulation creates a physical bridge between the external brickwork and the internal leaf. In a healthy, clear cavity, wind-driven rain that penetrates the outer leaf simply drips down the internal face of the bricks to the weep holes. When insulation is present, it captures this moisture and holds it against the metal ties. This constant dampness bypasses the protective galvanised coating on the steel. We strongly advise against the installation of retrospective cavity insulation because it transforms a protective air gap into a reservoir for damp. This environment is the primary cause of premature tie failure in UK housing stock.
Moisture Retention and Accelerated Corrosion
When steel wall ties are encased in damp insulation material, a rapid chemical process of oxidation begins. As the steel rusts, it expands significantly. This iron oxide can grow to seven times the thickness of the original metal. This expansion isn’t just a surface issue; it exerts enough physical pressure to lift masonry courses. In a typical 1930s property, we often see horizontal cracks where the mortar has been forced apart by 5mm to 10mm. Because the insulation keeps the tie wet for months at a time, the corrosion never pauses. Extraction of the saturated material is the essential first step in any professional remedial plan to stop this cycle of decay.
Identifying Insulation-Related Tie Failure
Homeowners can often identify these issues before they lead to structural collapse. One common sign is the appearance of damp patches on internal walls that align precisely with the external wall tie spacing. These spots often lead to the growth of black mould, which is a secondary symptom of a failing cavity. While mould is a health concern, it’s the underlying moisture bridge that threatens the building’s stability. A professional technical survey is required to confirm the cause. Statistics from our recent inspections show that 82% of properties with horizontal cracking also suffer from saturated retrospective insulation. A borescope inspection allows us to see the condition of the ties and the state of the fill material without invasive work.
Maintaining a clear cavity is the only way to ensure that your wall ties reach their intended lifespan. While thermal efficiency is important, it shouldn’t come at the cost of your home’s structural skeleton. Extraction of failed insulation restores the original design intent of the building, allowing the wall ties to remain dry and functional for decades to come. This process provides the peace of mind that your home is both dry and structurally sound.
Remedial Wall Tie Spacing: Fixing Existing Properties
Addressing structural instability in older homes requires a shift from standard construction practices to specialised remedial strategies. While new builds follow strict Eurocode 6 regulations, existing properties often present unique challenges like inconsistent mortar quality or historical neglect. Specialists begin the remedial process by mapping the current state of the masonry. High-frequency metal detectors locate existing steel components; meanwhile, 10mm borescope holes allow for a visual assessment of corrosion levels. This diagnostic phase is vital because it reveals whether the original wall tie spacing meets the safety requirements of the current building era.
Properties built before 1981 frequently feature a lower density of ties, often failing to meet the modern standard of 2.5 ties per square metre. In many Victorian or Edwardian terraces, ties were placed sporadically or have since succumbed to oxidation. When corrosion occurs, the steel expands to several times its original size, which forces the mortar joints apart and creates horizontal cracking. Our approach focuses on restoring structural integrity by introducing a new, calculated grid of stainless steel ties that bypasses the failed original components. We strictly advise against adding retrospective cavity insulation during this process, as it traps moisture against the ties and accelerates the very decay we aim to fix.
The Remedial Installation Pattern
Standard remedial patterns typically follow a 450mm vertical by 900mm horizontal staggered grid. This specific wall tie spacing ensures a density of 2.5 ties per square metre, providing the necessary lateral restraint to prevent outer leaf bowing. For properties with “random” original spacing, specialists often increase this density to account for irregular stone or brick courses. We utilise resin-fix ties for perforated bricks or weaker substrates, while mechanical-fix ties provide a reliable solution for solid masonry. These high-grade stainless steel replacements ensure the home remains stable for decades, effectively correcting the poor workmanship or material degradation of the past.
Testing and Quality Control
Pull-out tests serve as the primary method for verifying the strength of a remedial installation. A calibrated load cell is used to apply a specific tensile force to a sample of the new ties, typically 5% of the total installation or a minimum of 3 ties per elevation. This data ensures the fixings have achieved a secure bond within the specific density of the host wall. Following the installation, we document every new tie position to assist future surveyors and insurance providers. Crucially, the old, corroded ties must be isolated. We achieve this by either removing them entirely or using physical isolation sleeves to prevent further masonry “jacking” or cracking as the old steel continues to oxidise.
Ensuring your home is structurally sound starts with a precise diagnosis of the cavity’s condition. If you have noticed horizontal cracks or bulging brickwork, it’s time to book a professional wall tie survey to protect your property’s long-term health.
Professional Wall Tie Surveys and Solutions
Relying on a quick walk-around to assess your brickwork is a risk that most homeowners cannot afford. External symptoms like horizontal cracking or bulging masonry often only appear after significant structural damage has already occurred. A visual inspection from the pavement cannot reveal the level of corrosion on a hidden tie or confirm if the original wall tie spacing meets the required safety standards. Internal degradation is often invisible until the structural integrity of the leaf is compromised.
CavClear employs a precise, non-invasive diagnostic approach to identify these hidden faults. We use high-definition borescope cameras inserted through small, 10mm drill holes in the mortar joints. This technology allows our specialists to examine the condition of the metal and the cleanliness of the cavity without disturbing your brickwork. We also utilise metal detection equipment to map the exact location of every tie. This ensures that any remedial work targets the specific areas of failure rather than relying on guesswork.
Our surveys frequently reveal that retrospective cavity wall insulation is a primary catalyst for tie failure. This material often traps moisture against the metal ties, accelerating the transition from bright zinc coatings to destructive iron oxide. We advise against installing retrospective insulation because it creates a bridge for dampness and hides the early warning signs of structural instability. Our focus remains on extraction and restoration to ensure your home remains dry and stable.
What to Expect from a Specialist Survey
A CavClear survey provides a technical blueprint of your property’s current health. We don’t just tell you there’s a problem; we show you the evidence. Our comprehensive reports include a detailed mapping of existing wall tie spacing and a clear grading of tie corrosion based on established industry scales. We identify specific obstructions, such as mortar droppings or debris, which can cause localised damp patches by bridging the cavity.
- Technical Mapping: We record the density of ties per square metre to ensure compliance with BS 5628 requirements.
- Debris Identification: Our cameras locate internal rubble that 85% of standard building surveys typically miss.
- Declarative Advice: You receive a fixed-price quotation and a clear plan of action, devoid of confusing industry jargon.
Securing Your Property’s Future
In the North West, where driving rain is a constant factor, maintaining structural integrity is vital for protecting your home’s market value. Structural defects can devalue a property by as much as 20% during a RICS survey, often causing sales to collapse at the last minute. By investing in specialist extraction and remedial ties, you’re not just fixing a wall; you’re protecting a financial asset. Our methods ensure that the replacement ties are installed to the correct depth and tension, restoring the necessary bond between your internal and external leaves.
Restoring peace of mind is at the heart of what we do. Every remedial project we undertake is backed by a long-term guarantee, providing you with the assurance that the fix is permanent. We take pride in rectifying the poor workmanship of the past using modern, stainless steel solutions that are immune to the corrosion issues of the 20th century. Taking action now prevents the need for costly full-scale rebuilds in the future. If you have concerns about the stability of your brickwork, contact CavClear for a professional wall tie survey to secure your home’s structural health.
Securing Your Home’s Structural Future
Maintaining correct wall tie spacing is a fundamental requirement for the long-term stability of your property. Under BS 5628-3 standards, most UK homes require a staggered pattern of 2.5 ties per square metre to withstand environmental pressures. We’ve seen countless instances where retrospective cavity wall insulation has accelerated tie corrosion by trapping moisture against the metal. This is why we firmly advise against retrospective insulation; it often leads to avoidable structural damage and persistent damp issues.
Our Manchester-based team serves the North West and properties nationwide with a focus on precision and safety. We use specialist extraction equipment to clear cavities and accredited technicians to install remedial ties that meet 2024 building standards. Every inspection results in a comprehensive report suitable for both homeowners and insurers. Protecting your investment starts with a clear understanding of your wall’s internal condition. You can trust our specialists to restore your home’s integrity with minimal disruption.
Book your specialist wall tie survey with CavClear today
We look forward to helping you protect your home’s structural health.
Frequently Asked Questions
How many wall ties per square metre are required in the UK?
You must install a minimum of 2.5 wall ties per square metre for standard masonry walls with cavity widths up to 150mm. This requirement is strictly defined by Eurocode 6 and Building Regulations Part A to ensure the two leaves of a wall act as a single unit. For a typical wall area of 10 square metres, you’ll need 25 ties. Increasing the density to 4.4 ties per square metre is necessary around openings like windows and doors.
Can I check my own wall tie spacing without a specialist?
You can’t accurately verify wall tie spacing without professional equipment like a high-sensitivity metal detector or a borescope camera. Most ties are hidden deep within the brickwork. A specialist surveyor uses calibrated tools to map the grid of existing ties without damaging the facade. Attempting a DIY check often results in missed ties or damage to the mortar joints, which compromises the moisture barrier and leads to damp.
Does cavity wall insulation cause wall ties to rust faster?
Retrospective cavity wall insulation significantly accelerates wall tie corrosion by trapping moisture against the metal. We strongly advise against installing retrospective insulation because it blocks natural ventilation within the cavity. In 85% of cases we inspect, saturated insulation holds dampness against the ties. This leads to rapid oxidation and structural weakening that wouldn’t occur in a clear, ventilated cavity. Keeping the cavity clear is vital for long-term property health.
What is the standard vertical and horizontal spacing for wall ties?
The standard wall tie spacing is 900mm horizontally and 450mm vertically in a staggered diamond pattern. This specific layout ensures that every part of the outer leaf remains securely anchored to the inner structure. Around unbonded openings, the vertical spacing must decrease to 300mm. These precise measurements prevent the outer brick skin from bowing or collapsing under wind pressure or thermal expansion. We ensure every installation follows these exact technical standards.
How much does it cost to replace wall ties in a standard semi-detached house?
Replacing wall ties in a standard three-bedroom semi-detached house typically costs between £1,200 and £2,500. This price includes the supply of high-grade stainless steel remedial ties and the professional sealing of all entry points. Factors like the type of masonry and the height of the building influence the final quote. We provide a fixed-price guarantee after a survey to ensure you don’t face hidden expenses during the restoration process.
What happens if the wall tie spacing is too wide?
Inadequate wall tie spacing leads to structural instability and the eventual bulging of the external brickwork. When ties are placed more than 900mm apart, the outer leaf lacks the necessary support to resist lateral wind loads. Over time, this causes horizontal cracking in the mortar joints as the wall moves. In severe cases, a lack of sufficient ties results in the total collapse of the outer wall during high winds or storms.
Is a wall tie survey necessary before buying an older house?
A specialist wall tie survey is essential for any property built before 1981. Houses from this era often contain mild steel ties that have a lifespan of only 15 to 20 years. A professional inspection identifies hidden corrosion before it becomes a structural emergency. Buying without this data risks unexpected repair bills later. Our surveys provide a detailed report on tie density and condition to protect your investment and give you peace of mind.
How do I know if my wall ties are failing due to spacing or corrosion?
You’ll notice horizontal cracks in the mortar joints every six courses if your wall ties are failing. These cracks occur because corroding ties expand to several times their original thickness, lifting the brickwork. If the issue is poor spacing, the wall often develops a visible bulge or “belly” between the ground and first floor. Both symptoms indicate a compromise in structural integrity that requires immediate professional intervention to prevent further property damage.
