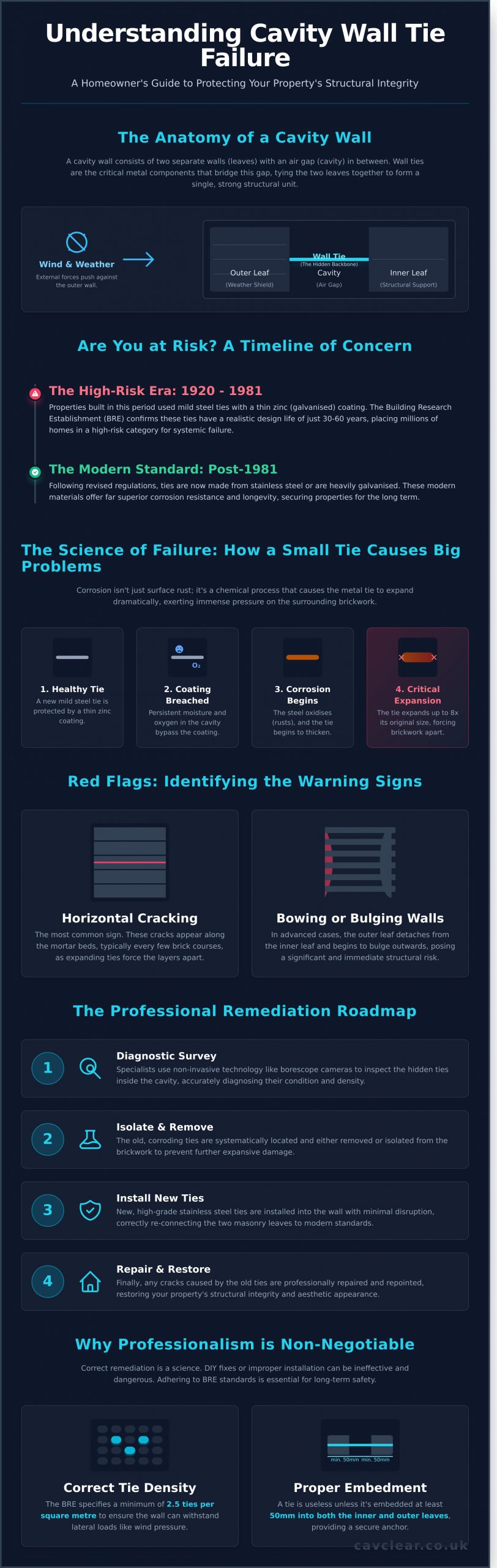

Cavity Wall Tie Failure: The Specialist Guide to Structural Integrity in 2026

What if that persistent damp patch you’re worried about isn’t a moisture problem at all, but a critical warning sign from your home’s structure? It’s a common and understandable mistake for homeowners, particularly those with properties built between the 1920s and 1981, to attribute bulging brickwork or fine horizontal cracks to simple damp or settlement. The anxiety over what these signs truly mean, and the potential for hidden, escalating repair costs, is a significant worry for anyone responsible for a property’s upkeep.

This specialist guide is designed to cut through that confusion. We will provide you with the expert knowledge to identify the definitive signs of cavity wall tie failure and understand the professional steps required to secure your property’s structural future, permanently. We will walk you through the diagnostic survey process, explain the non-invasive solutions available, and show you how a guaranteed repair can restore not just your walls, but your complete peace of mind.

Understanding Cavity Wall Tie Failure: The Structural Backbone of Your Home

Your home’s stability depends on small, unseen components performing a critical job. A cavity wall tie is a vital metal connector, usually a strip or wire, that spans the air gap between your home’s inner and outer walls. It physically ties the two masonry leaves together, creating a single, unified structure capable of resisting external forces. Think of them as the hidden structural backbone of your property. For a technical overview of their function, a good starting point is this guide to Understanding Cavity Wall Ties. These components are engineered to handle immense tension and compression, ensuring the wind pressure on your outer wall is safely transferred to the load-bearing inner wall. Without them, your external wall is just a vulnerable, expertstanding brick screen.

The history of their use in UK construction directly explains the risk millions of properties face today. While cavity walls became common in the 1920s, the materials used for ties were not built to last indefinitely. Early ties were often simple wrought iron or, more commonly, mild steel with a thin zinc coating (galvanisation). This galvanisation was intended to prevent rust, but standards before 1981 were inconsistent. Research by the Building Research Establishment (BRE) confirms that these ties have a realistic design life of 30 to 60 years. As we move through 2026, this means any property built before the early 1980s is now in a high-risk category for systemic cavity wall tie failure. Post-1981 regulations mandated heavier galvanisation or the use of stainless steel, which is now the industry standard for its superior longevity.

How Cavity Walls Work

A modern cavity wall is a sophisticated system. The outer leaf of brickwork serves as your home’s primary defence against the weather, while the inner leaf of blockwork provides the main structural support for floors and the roof. The cavity between them is essential in the damp British climate; it creates a barrier that stops rainwater from tracking across to the inner wall, preventing penetrating damp. The wall ties are the crucial connection that allows the two leaves to share lateral loads. When wind pushes against the outer wall (compression), the ties pull on the inner wall (tension), distributing the force and preventing bowing or collapse.

What Constitutes a ‘Failure’?

Wall tie failure is the loss of structural connection between masonry leaves due to metal degradation or improper installation. This dangerous condition doesn’t happen overnight; it develops from specific, identifiable causes that compromise the entire wall system. The two primary culprits are:

• Corrosion: This is the most common issue in older properties. As the protective zinc coating on mild steel ties breaks down, the steel begins to rust. The corrosion process causes the tie to expand to up to eight times its original thickness. This expansion exerts immense pressure on the mortar beds, forcing them apart and causing tell-tale horizontal cracks along the wall.
• Installation Defects: A wall is only as strong as its ties, and poor workmanship creates immediate weakness. This includes insufficient ‘tie density’—the BRE specifies a minimum of 2.5 ties per square metre—or ties being improperly embedded in the mortar. If a tie isn’t secured by at least 50mm in each leaf, it cannot perform its function, rendering it useless from day one.

Ultimately, whether from rust or poor fitting, the result is the same. The two walls begin to act independently, severely reducing the building’s structural integrity and posing a significant safety risk.

The Mechanics of Decay: Why Metal Ties Corrode and Expand

Understanding cavity wall tie failure begins with basic chemistry. The vast majority of ties installed in UK properties before the early 1980s were made from mild steel with a thin protective zinc coating (galvanisation). Once this coating is breached by persistent moisture and oxygen inside the cavity, the steel itself begins to oxidise. This process, commonly known as rusting, transforms the stable metal into flaky, unstable iron oxide.

The critical issue isn’t the rust itself, but its physical properties. Iron oxide is incredibly expansive. As a wall tie corrodes, the rust can occupy a volume up to six times greater than the original steel. This ‘Expansion Factor’ exerts immense, localised pressure on the mortar beds in which the ties are embedded. The force is powerful enough to physically push the outer leaf of brickwork away from the inner leaf, leading to the distinctive horizontal cracking that is a tell-tale sign of advanced structural distress.

This decay is often accelerated by the original building materials. Properties built in industrial areas before the 1950s frequently used ‘black ash mortar’, which contained sulphates and other corrosive compounds. This creates a highly aggressive, acidic environment within the wall cavity that actively strips the protective zinc coating from the ties, significantly shortening their effective lifespan.

The Impact of Cavity Wall Insulation (CWI)

Defective or poorly installed cavity wall insulation can dramatically accelerate the corrosion process. When insulation material becomes damp, either through water ingress or condensation, it ceases to be an insulator. Instead, it acts like a sponge, holding moisture directly against the metal wall ties for prolonged periods. This creates a perfect, localised microclimate for rapid oxidation. This is a primary cause of premature cavity wall tie failure in insulated homes. Before any effective wall tie replacement can begin, a specialist must first assess and, if necessary, perform a full cavity wall insulation extraction to create a dry, stable environment.

Historical Vulnerability: The 1920s to 1981 Gap

Properties constructed between the 1920s and 1981 are at the highest risk. During this period, building standards permitted the use of ties with a very thin zinc coating, often less than 20 micrometres thick. It wasn’t until the introduction of British Standard BS 5628 in 1981 that the required galvanisation thickness was tripled to around 60-90 micrometres, providing substantially more robust protection. Common ties from the high-risk era, such as the ‘fishtail’ or ‘vertical twist’ types, each have specific failure patterns. Understanding the different causes and signs of wall tie failure is crucial for an accurate diagnosis, as some ties snap while others expand aggressively.

Identifying the Warning Signs: From Horizontal Cracking to Invisible Threats

Recognising the symptoms of cavity wall tie failure is the first critical step toward protecting your property’s structural integrity. While some signs are obvious and visually alarming, others can be subtle or entirely invisible, developing silently until the point of critical failure. A trained eye knows what to look for, but every homeowner should be aware of these key indicators.

The most common and definitive signs of advanced wall tie corrosion are visible on your external brickwork. These symptoms demonstrate that the ties are not only failing but are actively damaging the masonry as they decay. Pay close attention to the following structural defects:

• Horizontal Cracking: Look for fine, horizontal cracks appearing in the mortar joints. These typically follow a regular pattern, occurring every 4 to 6 brick courses (approximately 450mm vertically), which matches the standard spacing for wall ties. This cracking is caused by the corroding metal tie expanding to several times its original thickness, a process known as ‘rust jacking’, which forces the mortar beds apart. This expansion is one of the primary causes of wall tie failure and a clear distress signal from your property.
• Bulging or ‘Bowing’ Brickwork: A visible outward curve or bulge in the external wall is a serious red flag. This is most frequently seen at upper levels or on exposed gable-end walls where wind loads are highest. It indicates that the outer leaf has effectively detached from the inner leaf and is no longer restrained.
• Separation of Frames: Check for noticeable gaps appearing between your window sills, lintels, or door frames and the surrounding brickwork. This is a direct consequence of the outer wall moving independently from the rest of the structure.
• Lifting Roof Edges: In severe cases of cavity wall tie failure, the outward movement of the wall can cause the edges of the roof to lift at the eaves. This signifies a profound loss of structural integrity that requires immediate specialist assessment.

The Danger of the ‘Invisible’ Failure

For properties constructed between the 1960s and early 1980s, the absence of cracking is not a sign of safety. Many homes from this period were built using thin wire ‘butterfly’ ties. Instead of expanding, these ties tend to corrode and snap cleanly. This creates an extremely dangerous situation where the wall loses its structural connection without any external warning, posing a significant risk of sudden collapse during storms with wind speeds exceeding 60 mph.

Secondary Signs and Damp Issues

Failing wall ties can also manifest as internal damp problems. When a tie’s protective galvanised coating is breached by corrosion, it creates a direct channel for moisture to travel from the wet outer wall to the dry inner wall, resulting in penetrating damp. Furthermore, mortar droppings left inside the cavity during construction can accumulate on the ties, creating a ‘bridge’ for moisture to cross. Internal dampness often serves as an early warning system for structural debris within the wall cavity.

The Remediation Roadmap: Surveys, Extraction, and Replacement

Once you suspect a problem, a structured and professional approach is the only way to restore your home’s structural integrity. A proper remediation plan isn’t guesswork; it’s a precise engineering process based on accurate diagnosis. This roadmap outlines the specialist techniques used to survey, isolate, and replace failing wall ties, ensuring a permanent solution to cavity wall tie failure and giving you lasting peace of mind.

The first step is always a thorough diagnostic survey. A specialist uses a high-frequency metal detector to map the location and density of the existing ties. This confirms whether the original builders installed the correct number of ties per square metre, which should be 2.5 ties according to building regulations. This initial mapping provides the blueprint for the entire project.

The Borescope Inspection Process

To visually assess the condition of the hidden ties, we drill a small, 10mm hole into the mortar joint. This non-invasive entry point allows us to insert a borescope camera directly into the cavity. We can then see the exact state of the metal ties, grading their level of corrosion against the official scale in BRE Digest 401. This evidence-based approach is crucial for producing a formal technical report, a document often required by mortgage lenders and insurance companies before they will approve a property for sale or cover.

Techniques for Tie Replacement

With a clear diagnosis, we can select the correct remedial system for your property. There is no one-size-fits-all solution; the choice depends on the type and condition of your brickwork and substrate. After installing the new ties, it’s vital to address the original, corroding ones. Some contractors simply “point and leave” them, but this is a critical error. As the old ties continue to rust and expand (a process called ‘rust jacking’), they will exert pressure on the masonry, causing ongoing cracking and damage. The correct specialist method is to isolate the old ties by cutting them back, preventing any future structural harm.

• Mechanical Expansion Ties: These are ideal for solid, high-quality brickwork. The tie is inserted and a mechanism is tightened, causing it to expand and grip the inner and outer leaves of the wall securely.
• Resin-Bonded Ties: For softer or perforated brick types, a resin-bonded tie is the superior choice. A specialised polyester or epoxy resin is injected into the hole, which then sets to form an incredibly strong, stress-expert bond with the masonry.
• Helical Ties: These stainless steel, spiral-shaped ties are a powerful and versatile solution. They are driven into the wall with a special tool, cutting their own interlocking thread into the masonry. This creates an immediate, high-strength mechanical connection without using grout or resin, making it a fast and non-disruptive fix.

Choosing the right technique is fundamental to a successful repair. An incorrect choice can lead to ineffective support or even damage to the brickwork. A comprehensive survey is the only way to determine the most effective and safest method for your home. If you have noticed the tell-tale signs of failing wall ties, don’t wait for the problem to worsen. Arrange a specialist survey today to get a clear diagnosis and a guaranteed solution.

Securing Your Property’s Future: Professional Remediation in 2026

Once you suspect an issue with your property’s wall ties, the path you choose next is critical. The temptation to opt for a cheap, uncertified ‘fix’ can be strong, but this approach almost always leads to greater expense and risk. DIY repairs or work by general builders lacking specialist equipment can improperly stress the brickwork, leading to further structural instability. Crucially, most UK home insurance providers will void claims related to structural damage if non-accredited work has been performed, leaving you entirely unprotected.

Engaging an accredited specialist isn’t just about repair; it’s about securing your property’s structural integrity for decades to come. A certified remediation provides documented proof that the issue has been professionally resolved to current building standards. This documentation is vital. When it comes time to sell, a history of properly managed cavity wall tie failure, complete with guarantees and a structural report, protects your home’s market value. Conversely, evidence of a botched repair or a neglected problem can devalue a property by as much as 20%, turning a manageable issue into a significant financial liability.

At CavClear, our work is founded on providing lasting peace of mind. We don’t just install new ties; we provide a comprehensive structural solution. Every project concludes with certified workmanship, an insurance-backed guarantee, and detailed structural reports that satisfy mortgage lenders and surveyors. This is the CavClear guarantee: a permanent fix that protects your home and your investment.

The Cost of Inaction vs. Professional Repair

Delaying a professional assessment is a costly gamble. A specialist endoscopic survey to diagnose the extent of corrosion and provide a clear remediation plan typically costs between £300 and £500. Compare this to the catastrophic cost of a full outer-leaf wall rebuild, which for an average UK semi-detached home can exceed £20,000. Many homeowners mistakenly believe their insurance will cover them, but standard policies exclude ‘gradual deterioration’. They will not pay for the repair, only for the resulting damage after a collapse. Acting early is the only financially sound decision. Furthermore, our process includes ensuring the cavity is clear of debris, which, combined with secure ties, improves your home’s thermal efficiency and can contribute to long-term energy savings.

Why CavClear is the Specialist Choice

Our reputation is built on technical excellence and respect for your home. We use minimally invasive techniques, employing small-bore endoscopes to inspect cavities and precision drilling to install new ties, preserving your property’s aesthetic. Our clean extraction processes ensure that all corroded materials and debris are removed, preventing future problems with damp or thermal bridging. With teams operating across the UK, we provide national coverage that adheres to rigorous local building standards. Don’t let a hidden problem determine your property’s future. Protect your investment and secure your home’s structural health. Book your professional wall tie survey with CavClear today.

Secure Your Home’s Structural Integrity for 2026 and Beyond

The structural integrity of your property rests on its cavity wall ties, and understanding the risks is the first step toward protecting your investment. The threat of cavity wall tie failure is real, often signalled by horizontal cracking, but the true extent of corrosion can remain hidden. Don’t wait for visible signs to worsen; proactive assessment is the key to preventing significant structural damage and costly repairs down the line.

Take decisive action to safeguard your home. Secure your home’s structure—request a specialist wall tie survey from CavClear. Our accredited technicians provide detailed technical reporting, giving you a clear and honest assessment of your property’s condition. Every remediation project we undertake is backed by our long-term structural guarantees, providing you with certified protection and complete peace of mind. It’s a vital investment in your property’s future value and safety.

Frequently Asked Questions About Cavity Wall Tie Failure

How long do cavity wall ties usually last before failing?

The lifespan of a cavity wall tie depends on its material. Galvanized steel ties, common in properties built before 1981, have a functional life of 40-60 years before corrosion becomes a risk. Modern stainless steel ties, however, are specified to last the lifetime of the building, often well over 100 years. Environmental factors, such as proximity to coastal areas with salt-laden air, can significantly accelerate the corrosion process of older, less resilient ties.

Will wall tie failure show up on a standard RICS homebuyer’s survey?

A standard RICS Level 2 survey may identify visible external symptoms like cracking or bulging brickwork, but it is not an invasive inspection. Surveyors won’t typically use an endoscope to view the ties inside the wall cavity. For a conclusive diagnosis, a specialist wall tie survey is required. This targeted investigation provides the definitive assessment that mortgage lenders and buyers need for complete peace of mind before a purchase.

Can I sell my house if it has failed cavity wall ties?

Yes, you can sell a property with this issue, but it must be declared to potential buyers. Most UK mortgage lenders will demand that the work is completed before they release funds, which can cause significant delays. The most effective approach is to have a specialist rectify the problem and provide an insurance-backed guarantee. This resolves the structural concern upfront, allowing you to secure your property’s full market value without complications. Navigating these complexities is where an experienced estate agent can be invaluable, and working with a professional team like Spire Vue Estates can help ensure a smooth transaction despite such structural challenges.

What is the average cost of wall tie replacement in the UK?

The average cost for a typical three-bedroom semi-detached house in the UK ranges from £2,500 to £5,000. Costs are generally calculated per square metre, falling between £8 and £15, depending on access, property size, and the type of replacement ties needed. A professional survey from a specialist firm will provide a precise, fixed-price quotation, ensuring total clarity on the investment required to restore your home’s structural integrity.

Is wall tie failure covered by standard buildings insurance?

No, standard buildings insurance policies almost never cover the cost of replacing failed wall ties. Insurers classify the issue as a maintenance problem caused by gradual deterioration over time, which is a standard exclusion. The homeowner holds the responsibility for the property’s upkeep. Proactively addressing wall tie issues is an essential investment in your home’s long-term safety and value, rather than a claimable event.

How many wall ties does a standard house actually need?

UK building regulations mandate a standard density of 2.5 wall ties per square metre of wall area. This ensures the two leaves of the cavity wall are securely connected. Around openings such as windows and doors, this density increases to provide additional support, with ties required every 300mm vertically up the jambs. A professional replacement scheme will always install new ties to meet or exceed these current building standards.

What happens if I ignore the horizontal cracks in my brickwork?

Ignoring horizontal cracks will lead to worsening structural instability and much higher future repair costs. These cracks are a classic sign of cavity wall tie failure, where the old ties rust, expand, and force the mortar joints apart. If left untreated, the outer wall can begin to bulge and detach from the inner structure, creating a genuine risk of collapse. Prompt action is the only safe and responsible course of action.

Can cavity wall insulation cause my wall ties to rust faster?

Yes, improperly installed or unsuitable cavity wall insulation can accelerate the corrosion of existing wall ties. If the insulation material becomes damp, either through condensation or water ingress, it can trap moisture directly against the metal ties. This creates a continuously corrosive environment, especially for older galvanized steel ties. It’s vital to have a specialist assess the cavity’s condition before and after any insulation work is performed.
